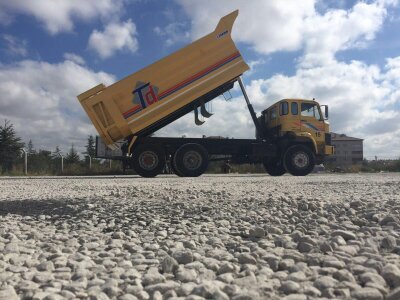

ON-VEHICLE TIPPER

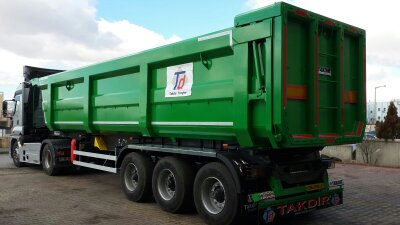

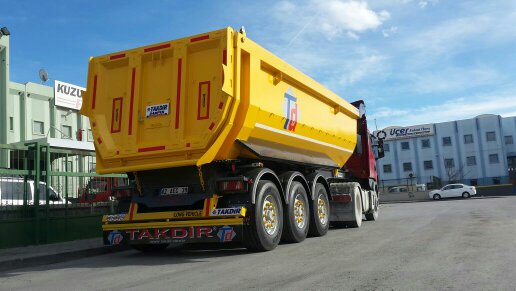

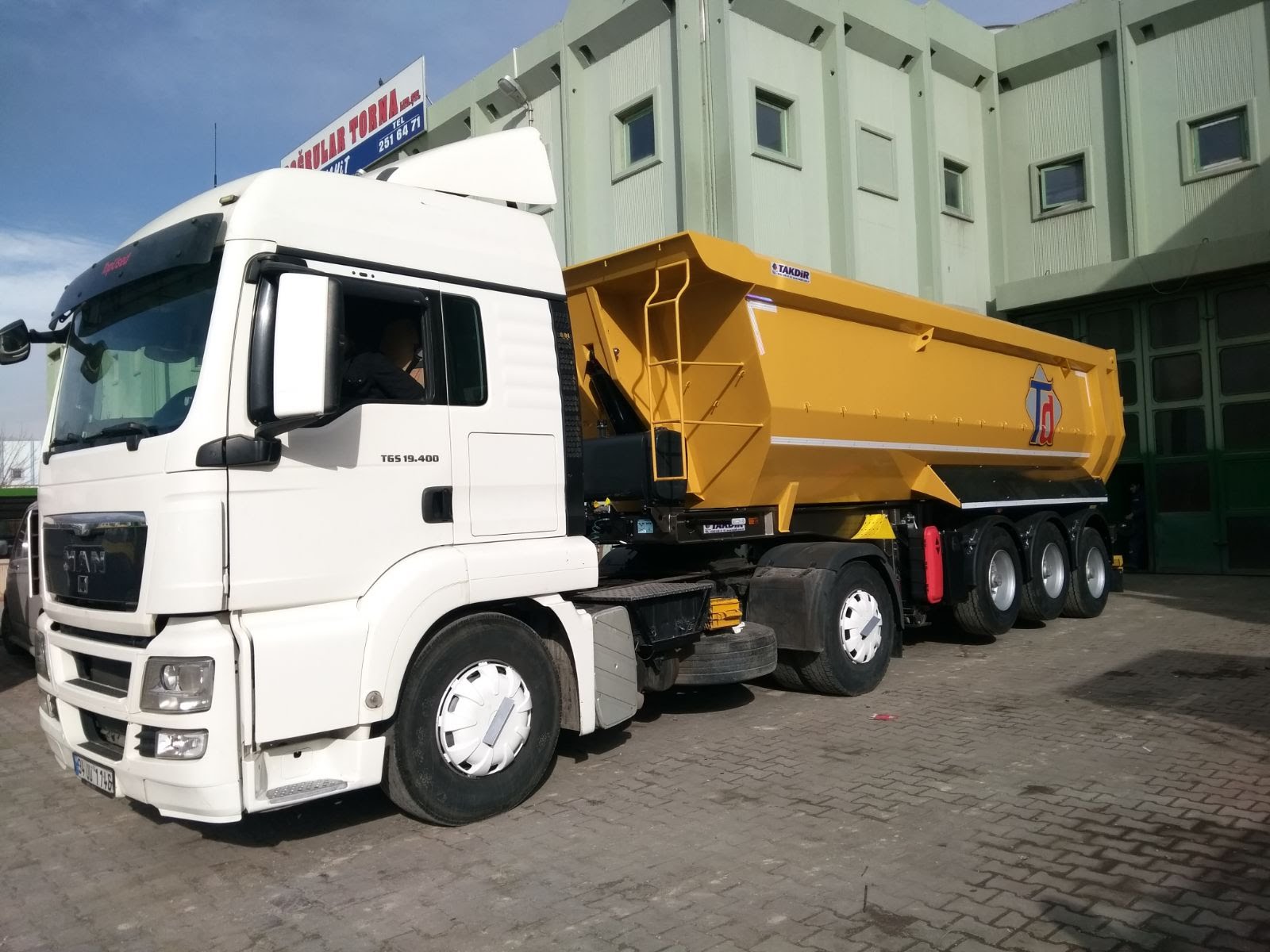

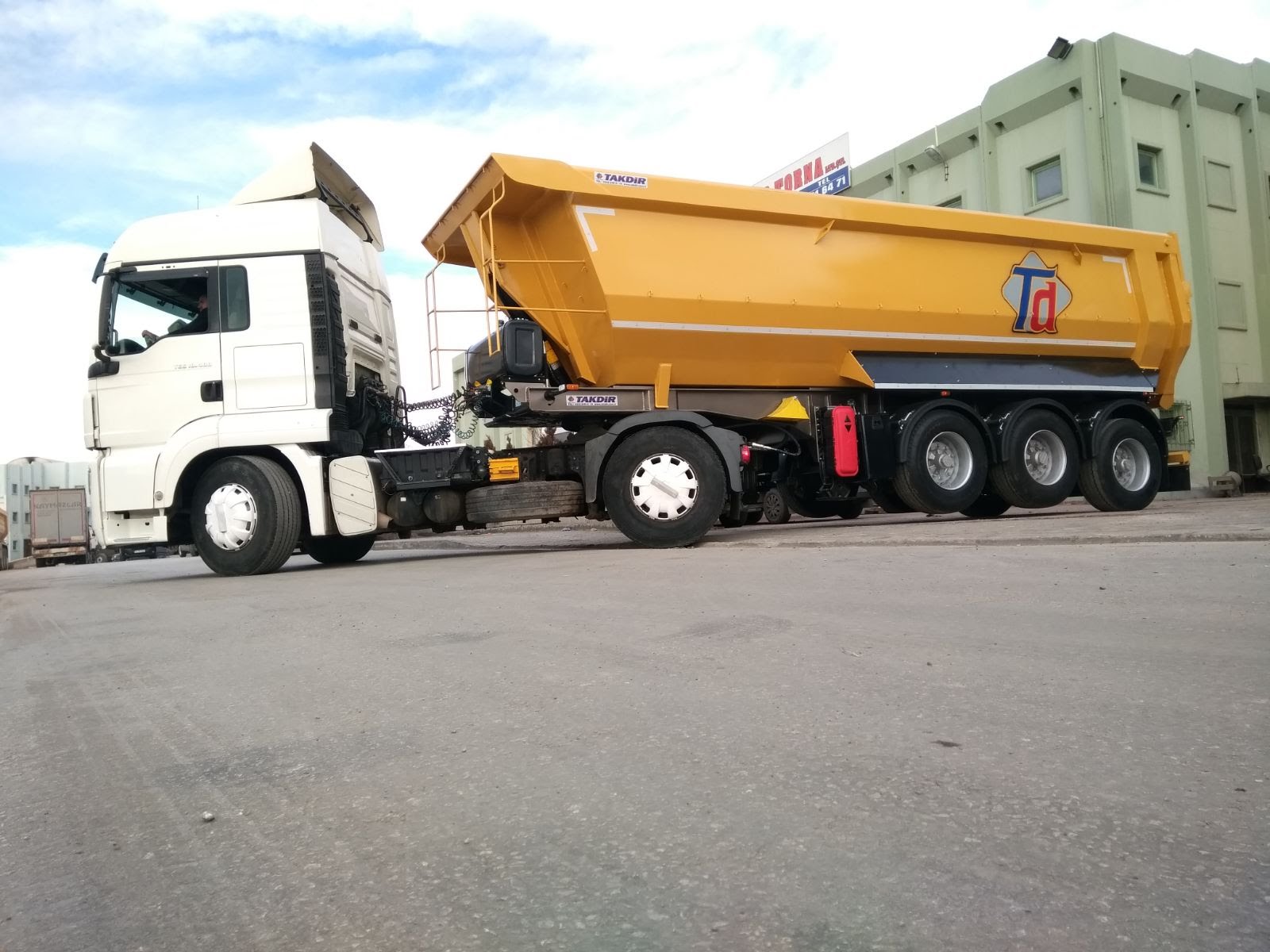

TRUCK TRUCKS ANALYSIS DAMPER WITH ON-VEHICLE COVER 1. Base sheet 3 mm - 4 mm Imported steel sheet is used. 2. Base frame is manufactured from 160 NPU reinforced 6-8 mm ST52 sheet. 3. Intermediate sleepers 80 NPI. 4. Side covers 3 or 4 covers are manufactured as 1.2 mm imported steel sheet thickness with double insert. 5. Rear cover is manufactured with 2-way opening. 6. Damper movement is performed by telescopic cylinder of 4500 4 stages cold draft which provides 45 ° tilting angle. 7. Hydraulic oil tank, damper, pneumatic control, double speed lowering valve and limit control safety valve. 8. Damper is painted with desired epoxy primer and acrylic paint. 9. The chassis of the vehicle is modified according to the damper and double bumper, spare wheel, water tank and food cabinet are connected to the rear, ABOVE POOL TYPE TIPPER 1. Pool Base sheet 450 BRINEL or equivalent hair is used in 5 mm - 10 mm thickness. 2. Pool Side walls 450 mm BRINEL or equivalent sheets of 4 mm - 8 mm thickness are used. 3.Pool Rear is manufactured as single direction opening or lift if requested. 4. Pool Damper movement is carried out with 4500 4 stage cold draft telescopic cylinder which provides 45 ° tilting angle. 5. Hydraulic oil tank, damper, pneumatic control, double speed lowering valve and limit control safety valve. 6. Damper is painted with desired epoxy primer and acrylic paint. 7. The chassis of the vehicle is modified according to the damper and double bumper, spare wheel, water tank and food cabinet are connected to the rear.
